UK-Radio "CR4S.V2" 2.4Ghz + Reicever ABSIMA

FEATURES

Description of the channels (the transmitter has 4 channels which are assigned as follows):

CH1:Steering wheel

CH2:Throttle lever (Trigger)

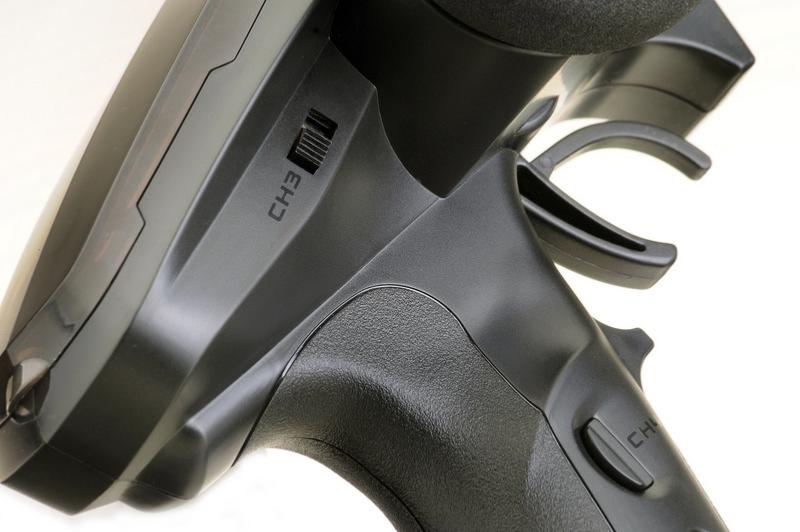

CH3:3-position toggle switch

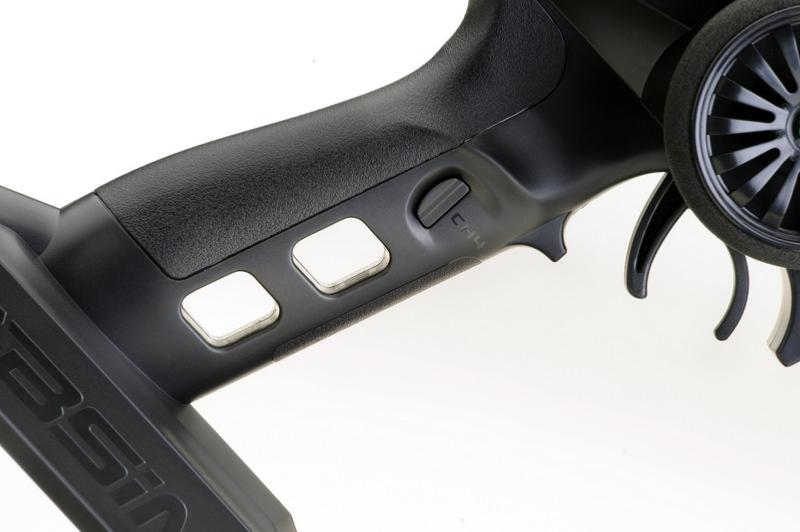

CH4:Push button

Reverse function (REV): This function can be used to set the direction of rotation of the steering servo/motor.

Trimming (TRIM):Adjustment of the straight run and throttle neutral position.

DualRate function (D/R): The steering angle and also the motorrotation power can be increased or reduced by operating this rotaryknobs.

Failsafe function: This function determines what the receiver should pass onif the signal to the transmitter is lost (e.g. emergency braking).

Beginner modus: This function is intended for new comers. In this mode the motor power is automatically reduced to 50%.

SPECIFIKATION

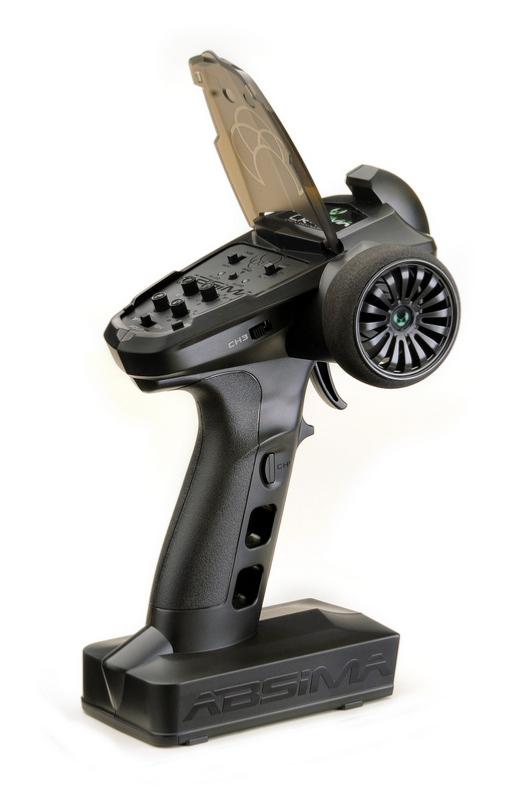

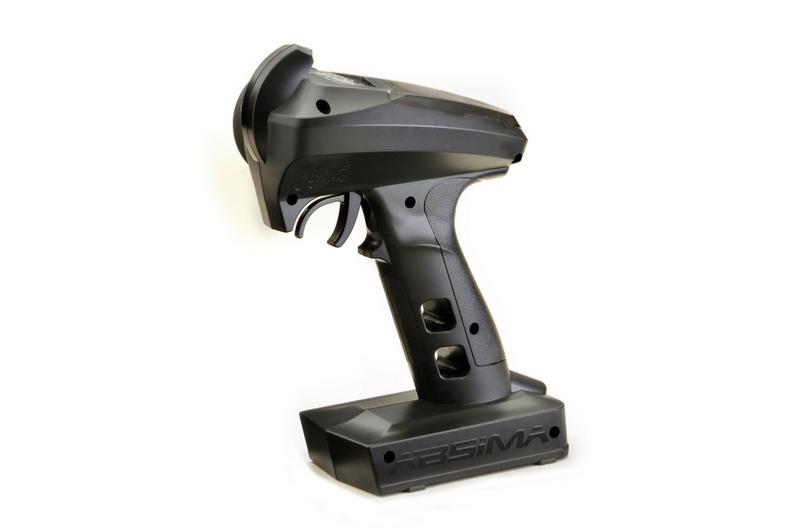

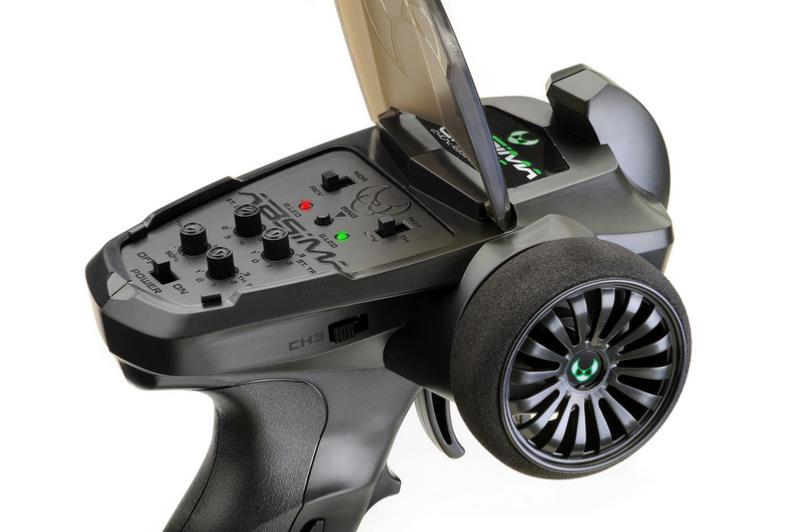

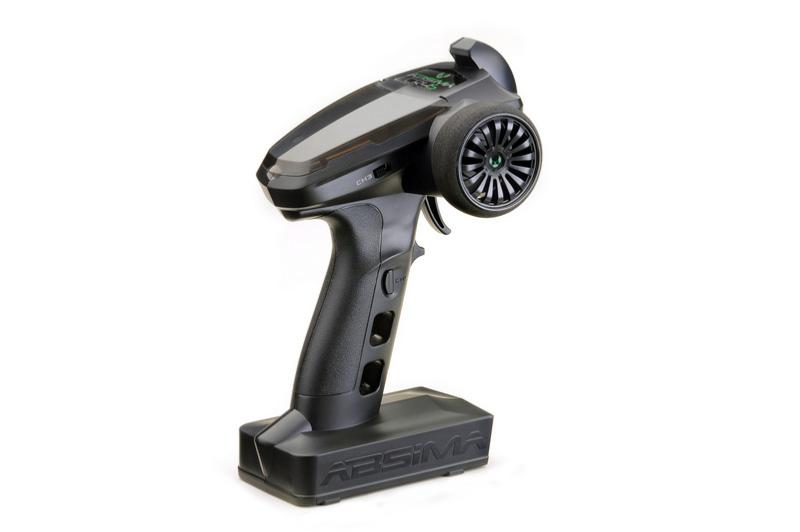

Radio CR4S-V2:

Channels:4

Protocol:2.4GHz

Distance:>150m

Battery(not included): 4*AAA 1.5 - 6V DC

LowV Warning: <4.2V (only NiMH)

Using LiPo TX battery possible: Yes (only LiPos with built-in low Vprotection)

Charging interface: No

Antenna type: Single antenne

Temperatur range: -10°C - +60°C

Dimension(L/W/H): 150*100*210 mm

Weight:ca. 130 g

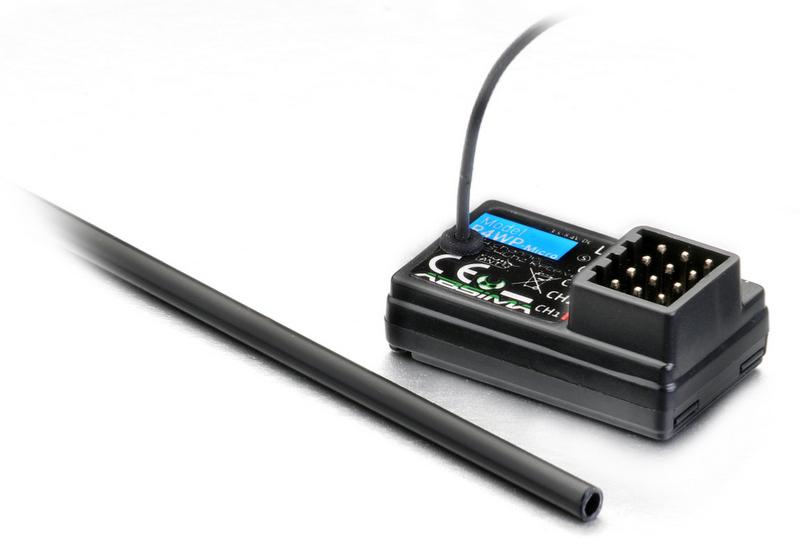

Receiver R4WP-V2 Micro (2020019):

Channels:4

Antenna type: external single antenna

Waterproof:Yes

Power:3.5-8.4V

Failsafe:Yes (in connection with radio)

Temperatur range: -10°C - +60°C

Weight:5 g

Size:30.2*18.0*13.0 mm

SETINCLUDES

1*4-Channel radio "CR4S-V2"

1*4-Channel receiver

1*Antenna tube

1*Manual (DE/ENG/FR)
