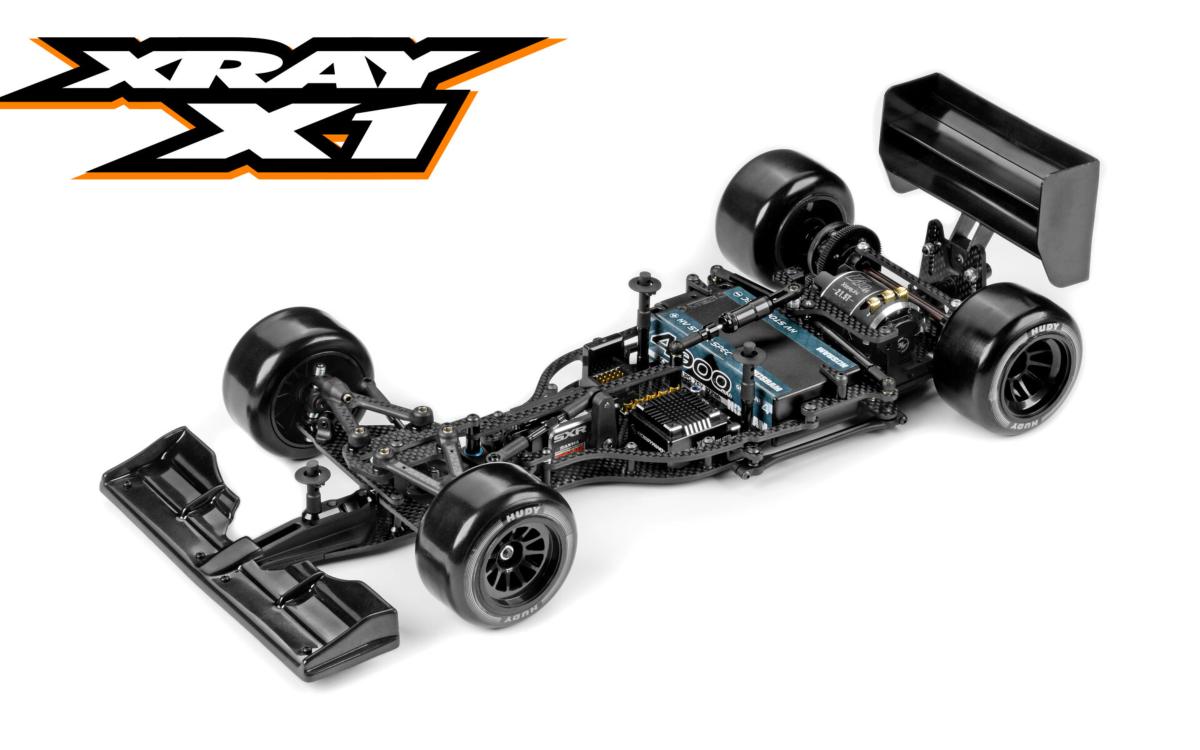

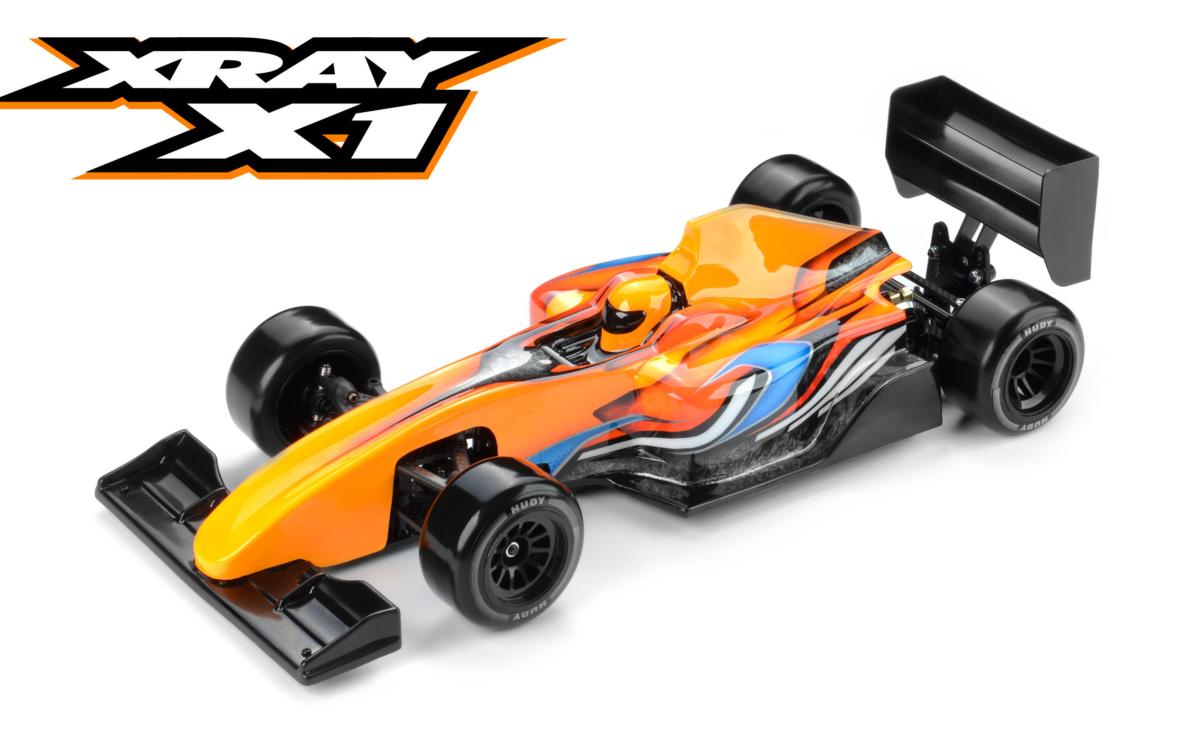

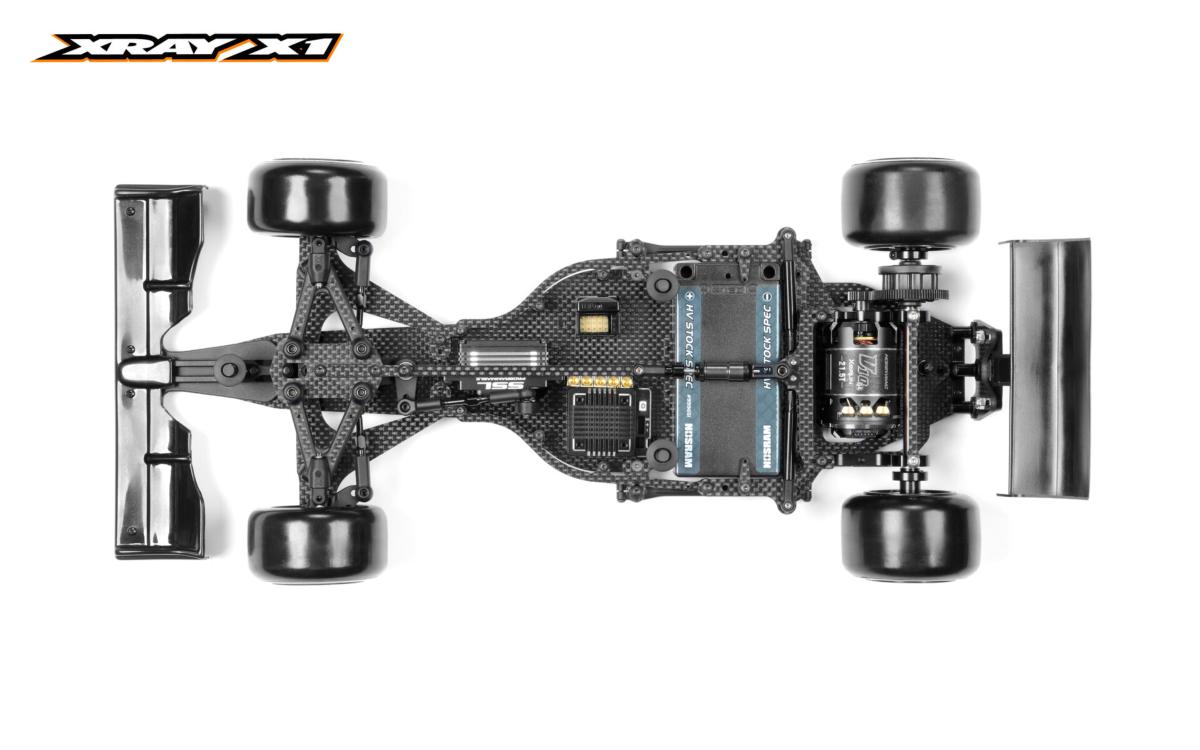

UK-Kit X1 Formule 1 1/10 - 2025 (car only) XRAY

AllNew Features 2025

All-new one-piece chassis design with more consistent hand lingin all conditions and improved tweak resistance

Narrower chassis shape reduces chassis drag during cornering

Rear POD concept on top of chassis for less drag and improved tweak resistance

Adjustable POD angle controlled by set screw at the rear of chassis for finetuning

Rear spring location improves forward traction with increased adjustability and lower CG

Rear droop adjustment through rear POD spring tension that sits in a special composite adjuster

Universal rear spring nut holder works for both conical and linear springs

2-piece lower pod plate mounts to the bulkheads, offering droop and pod angle adjustments with support for the side springs

Ultra-light,lower CG bulkheads are foundation of new POD system

Leftside bulkhead has mounting holes incorporated to mount optional motor cooling fan

Lowered pivot holder and small diameter pivot ball offer lower roll center positions and greater adjustment range

CarbonFiber top plate for center shock and side damper mountings

New rear carbon side spring brace aligns with new POD geometry

Composite Snap Lock™ bushings press into carbon fiber parts for secure andreliable hardware installation

All-new spring-free center shock absorber with 1-hole piston provides exceptional bump handling, low maintenance, and helps lower CG.

Side braces with a narrower design save weight and leave more space for electronics and also allows better body fitment

Narrower side brace mounting holders use M2.5 screws for weight savings

Aluminum side link holders with 2-pin design for more rigidity and improvedtweak resistance

2-pincarbon fiber side link plates integrate with aluminum holders forreliable alignment and offer 3 side link front pivot mounting positions for maximum adjustability

New wing mounting system which saves weight and provides cleaner designand improves the durability and track width adjustment possibilities

New adjustable wing angle for greater adjustment possibilities

New redesigned lower arms with more material around the holes for improved durability in serious crashes

New battery mounting system works with rear brace and front backstop forconvenient installation

Two body post mounting position options for different battery packs allows for different configurations

Aluminum side spring retainers for more precise and consistent side spring mounting

Most commonly used soft front springs included in kit for best all-around starting set-up
