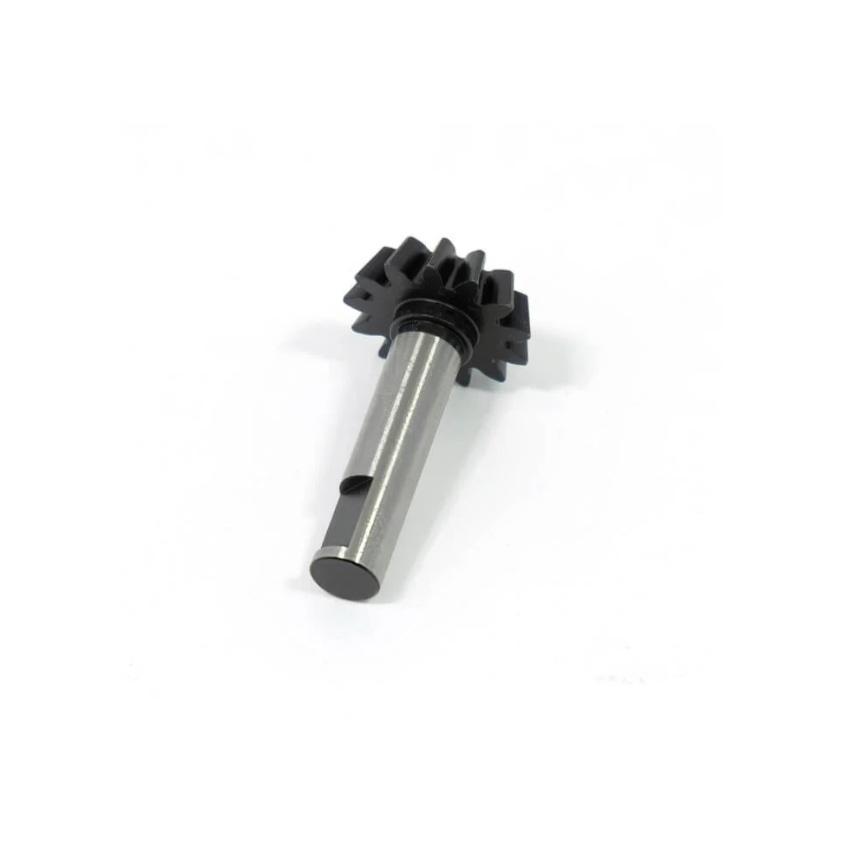

UK-Diff Pinion (13t, CNC, use with TKR9151B) TEKNO RC

TEKNO RC
(Code: TKR9153B)
In Stock
18.40 €
25g
Description



TKR9153B– Diff Pinion (13t, CNC, use with TKR9151B)

Finetune the gearing of your Tekno RC EB/NB48 2.x buggies with two newsets of ring and pinion gears. These new gears have an improved toothengagement which offers smoother acceleration and lower rollingresistance for improved corner speed. These new ring and pinion gearsare a direct replacement for TKR9151 and TKR9153 and no additionalhardware is required.

Overdrive

Invery loose conditions, these new gears can be used for under/overdrive. Overdrive is only recommended in rare situations wheretraction is very low.

ODwith 13/43 and 14/47 = 1.484% (13/43 goes in front)
OD with 13/43and 12/40 = 0.7724% (13/43 goes in front)
OD with 12/40 and 14/47= 0.7116% (12/40 goes in front)

Note

Thesenew gears must be used with their counterparts. For instance,TKR9151B must be used with TKR9153B and TKR9151C must be used withTKR9153C.

Current 2.x

12t Pinion(TKR9153)
40t Ring (TKR9151)
FDR: 12.3077

Included withEB/NB48 2.x. Most punch but more rolling resistance off power.Good for smaller tracks with more 180’s. Also good for trackswith short run ups to jumps out of corners.

New

13t Pinion(TKR9153B)
43t Ring (TKR9151B)
FDR: 12.2130

Reduced wheelspinon loose tracks. Less punch but smoother than 12/40 gears. Bestbalance. Recommended for larger/high speed tracks with moresweepers.

New

14t Pinion(TKR9153C)
47t Ring (TKR9151C)
FDR: 12.3956

Smoothestacceleration, least rolling resistance, improved corner speed forsweeping corners. Nearly a direct replacement for 12/40 gears butwith improved tooth engagement.

VehicleCompatibility

  • TKR9153C- Diff Pinion (14t, CNC, use with TKR9151C) is not included with anykit.

  • Thiscan be used with the EB48 2.0, EB48 2.1, EB482.2, NB48 2.0, NB48 2.1 and NB48 2.2 vehiclesand should be a direct replacement for the stock part or used as anew feature. Please use the instruction manual for thekit(s) listed to verify compatibility and no additional items arenecessary before purchasing.
