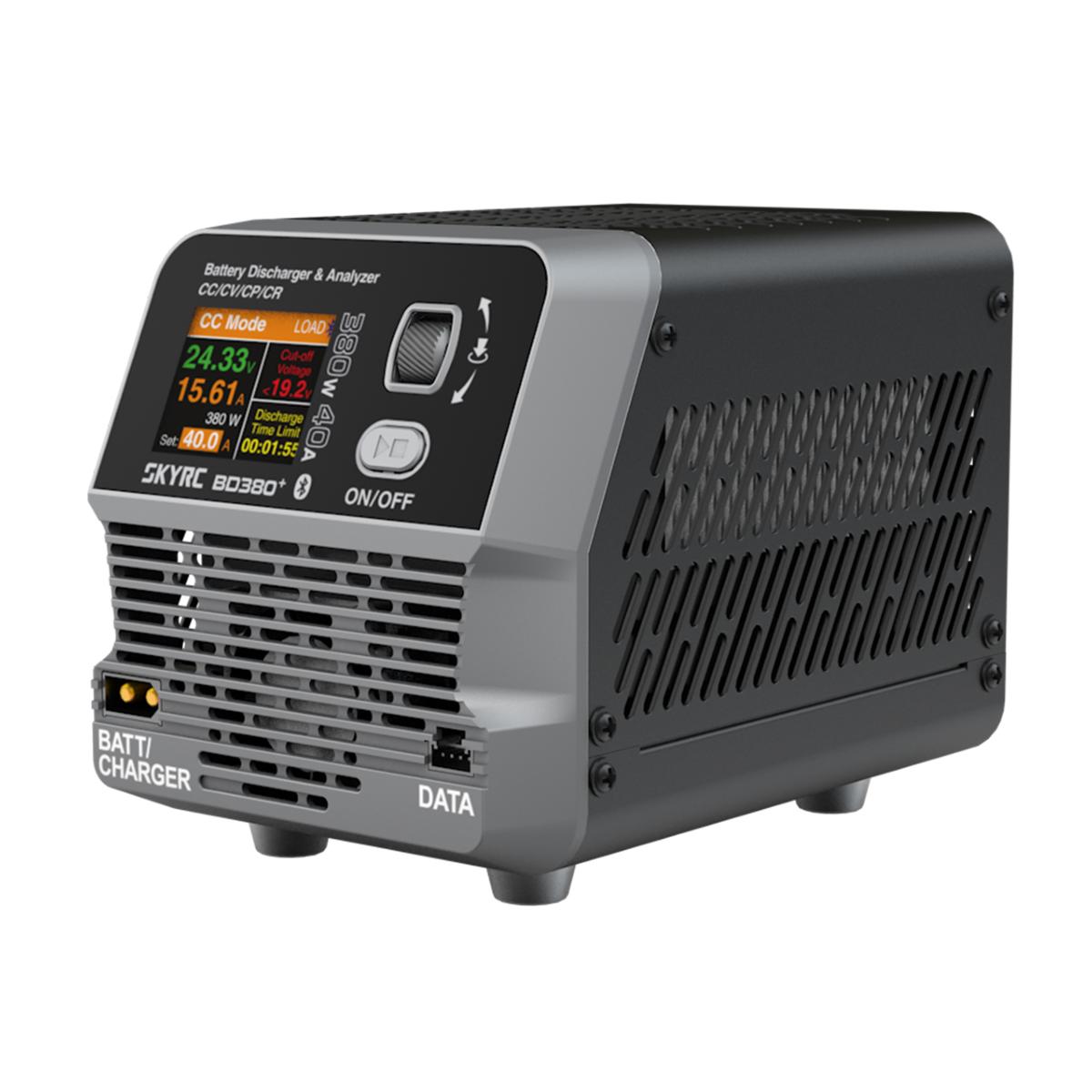

UK-Battery Discharger BD380+ and Analyzer 40A 380W SKY-RC

UK-Battery Discharger BD380+ and Analyzer 40A 380W SKY-RC

SKYRC
(Code: SK600153-03)
OUT OF STOCK
129.90 €
500g
Description

Powerful discharging. Precise analysis. The SkyRC BD380+ is a standalone battery discharger and analyzer for demanding applications. Up to 380W of power, 40A discharge current, and 40V deliver tremendous performance and precise handling for all battery types!

The BD380+ begins discharging autonomously immediately after connectionno external power supply required. Thanks to Bluetooth app control and PC/Mac connectivity (USB-C), you can monitor voltage, current, power, and discharged capacity in real time.

Features:

  • 380W maximum power, up to 40A and 40V
  • Four discharge modes: CC (Constant Current), CP (Constant Power), CR (Constant Resistance), CV (Constant Voltage)
  • Real-time curves & measurements
  • App control via Bluetooth and PC/Mac software via USB-C
  • Efficient high-performance cooling system
  • XT60 connector; multilingual user interface

Specifications:

Operating voltage: 340V DC
Discharge power (max.): 380 W
Discharge current: 0.3 – 40.0 A
Discharge voltage range: 340V
  CC: 0.3 – 40.0 A
CR: 1 – 100Ω
CP: 1 – 380W
CV: constant voltage
Connector: XT60
Communication: Bluetooth/app
Dimensions / weight: approx. 159.7 × 121.6 × 110 mm / approx. 1.1 kg
